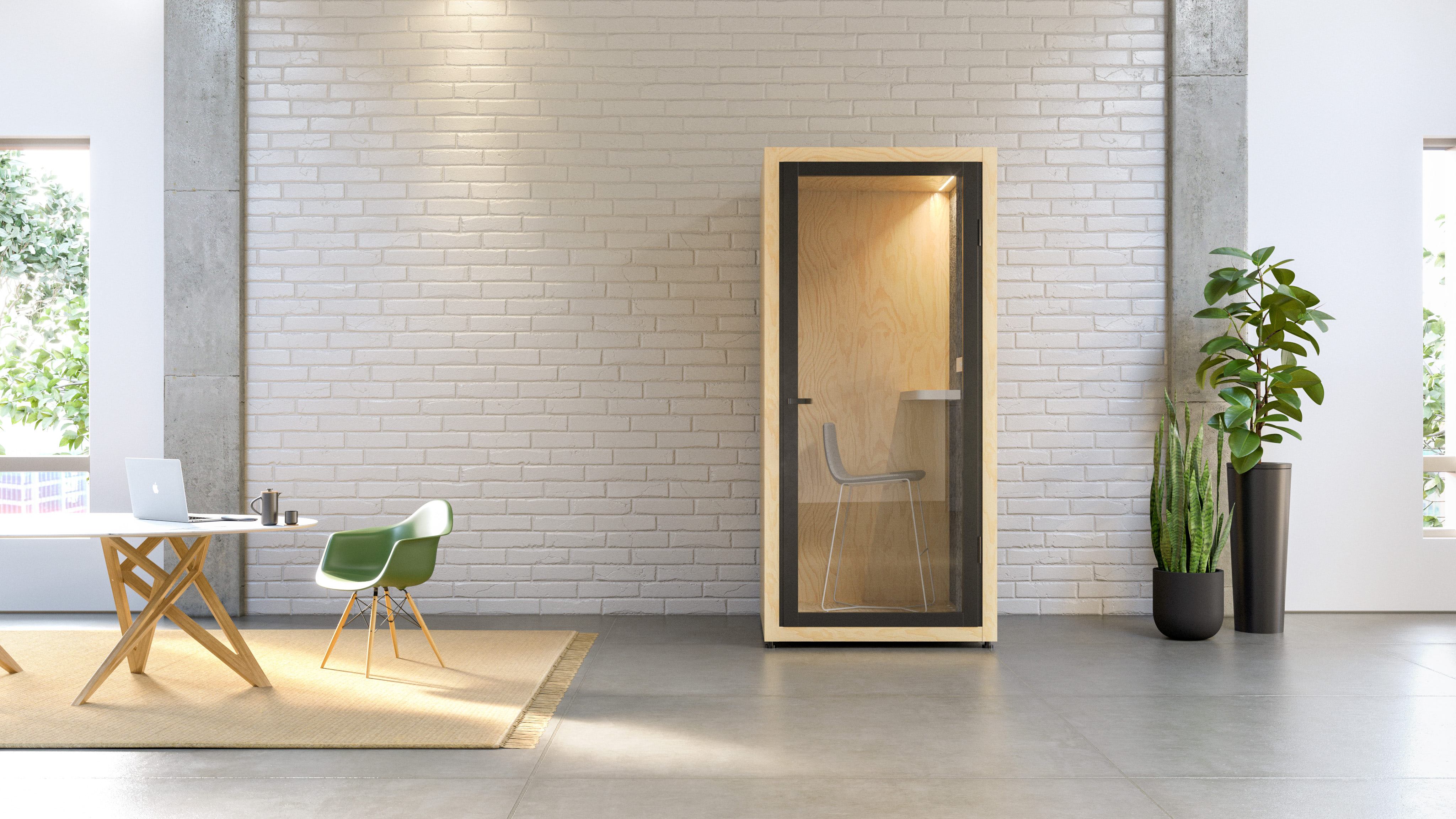

Privacy Pod
Built to deliver maximum focus and privacy, and to enhance productivity, the Privacy Pod is designed to help transform spaces simply and quickly.
Features & Benefits
Complete
Privacy Pod arrives complete with lighting, connectivity, electric outlets, and ventilation preinstalled.
Easy
Tilt up design, easy to construct within one hour. Plug and play.
Quality for unparalleled value
Best in class, beautiful materials designed to stand the test of time.
Sustainable
Naturally sustainable plywood, the best materials, and manufacturing support LEED(™) building design and credits.
Soundproof
Designed with naturally acoustic 3” plywood, ⅜-in glass and recycled acoustic felt to create peace and quiet.
Complete
Privacy Pod arrives complete with lighting, connectivity, electric outlets, and ventilation preinstalled.
Easy
Tilt up design, easy to construct within one hour. Plug and play.
Quality for unparalleled value
Best in class, beautiful materials designed to stand the test of time.
Soundproof
Designed with naturally acoustic 3” plywood, ⅜-in glass and recycled acoustic felt to create peace and quiet.
Sustainable
Naturally sustainable plywood, the best materials, and manufacturing support LEED(™) building design and credits.
The Vision 1 storefront solution offers high speech privacy with an elegant profile. Intelligent framing profiles allow for any design layout in any space.
Sturdy aluminum extrusions, can accommodate 1/4-in to 5/8-in glass thickness. Finishes available:
Powder Coat Colors
Additional Aluminum
Aluminum-framed doors in two configurations - with and without glass panel. Optional integrated slider available.
Standard glass thickness ⅜-in laminated with minimum thickness ⅓-in, maximum 1-in. Clear finish. Any digital vector file can be printed with ceramic paint at point of fabrication.
STC Rating 39 with ⅝-in glass
The Vision 2 is an enhanced take on the standard U-channel system. Improved extrusion design along with increased accessories allows for the U-Channel Advanced System to tackle more complex layouts and design conditions. Accompanying frames with easy door integration creates a more comprehensive offering.
U-Channel available in 1-in and 1 1/8-in widths for glass thicknesses from 3/8-in to 3/4-in. Multiple finishes available:
Powder Coat Colors
Stainless Steel
Anodized Aluminum
System features additional profiles to accommodate door hardware.
Standard glass thickness ⅜-in laminated with minimum thickness 5/16-in, maximum 1/2-in. Clear finish. Any digital vector file can be printed with ceramic paint at point of fabrication.
KOVA products are designed to deliver maximum speech privacy.
The standard 1.75-in x 4-in profiles offer a versatility and reliability that can give certainty to any design challenge
Features a traditional 1.75” x 4” frame with center-glazedpanels.
Powder Coat Colors
Stainless Steel
Anodized Aluminum
Standard swing with sliding options available. Door hardware included in base package.
Standard thicknesses include ⅜” to ⅝”. Clear finish. Any digital vector file can be printed with ceramic paint at point of fabrication.
Up to STC 39 rating with5/8-in glass.
Exposed 3” Plywood, exterior and interior. Recycled ⅜-in acoustic felt interior.Built-in worktable.
Plug-and-play powered by a single exterior outlet.LED strip light2 USB outlets2 electric outlets, UL certified29.6 dBa whisper quiet air circulation
Laminated ⅜-in glass in a matte black aluminum door frame. Including door handle and optional electronic locking system.

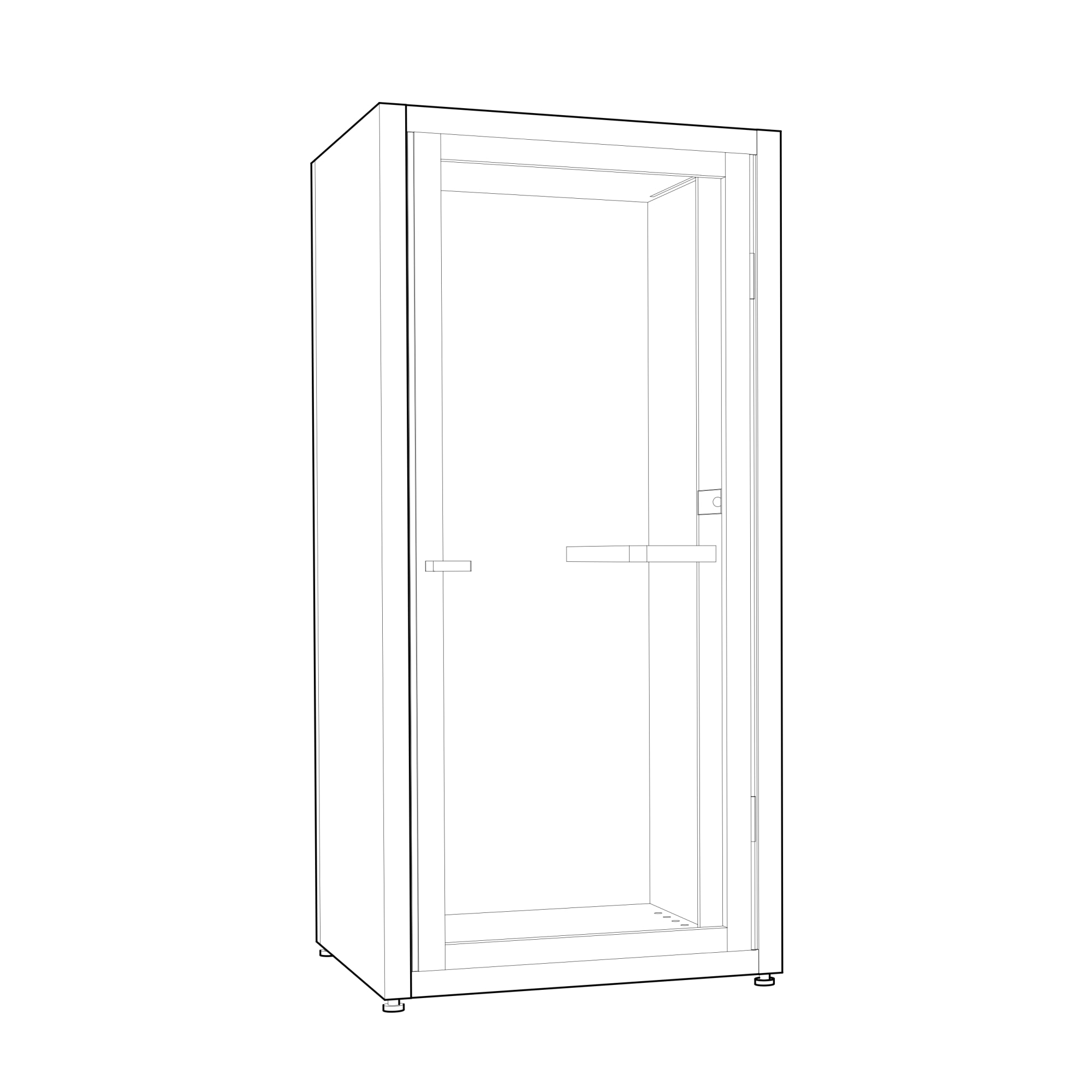

Exterior Dimensions: 88-in h x 48-in w x 48-in d
In testing
Configurations
As an inspiration, these are few examples of potential configurations.
Butt-glazed with Separate Door
Separate glazing and door option.
Butt-glazed with Integrated Door
Unique profile between door and glazing to provide seamless integration.
Butt-glazed with Clerestory
Butt glazed option with strip of clerestory glazing above glass and door
Vertical mullion with Separate Door
Separate glazing and door option with a vertical mullionat glass joints.
Butt-glazed with Clerestory
Butt glazed option with strip of clerestory glazingabove glass and door.
Butt-glazed
Advanced shoe and head profiles with gasket at verticals joints.
Butt-glazed with Integrated Door
Advanced head and shoe profiles with integrated sliding door hardware.Also available with swing door.
Butt-glazed with Separate Door
Separate glazing and door option.
Butt-glazed with Integrated Door
Unique profile between door and glazing to provideseamless integration.
